Характеристики
| Параметр |
Значение |
| Sync Input: |
Tri-Sync or Black Burst |
| Supported Codecs: |
AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, HEVC, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHR & DNxHD, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-Bit 4:2:2, Uncompressed 10-Bit 4:2:2, Uncompressed 10-Bit 4:4:4 |
| Operating Temperature: |
41 to 104°F / 5 to 40°C |
| Supported Operating Systems: |
macOS 10.13, 10.14 or Later
Windows 7, 8.1, 10 (All 64-Bit)
Linux |
| SDI Video Sampling: |
8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in |
| Certifications: |
FCC, CE, and C-Tick |
| SDI Color Precision: |
8, 10, 12-Bit RGB 4:4:4 (In All Modes up to 1080p30)
8, 10-Bit YUV 4:2:2 (In All Modes)
12-Bit RGB 4:4:4 (Supported in |
| Video Support: |
HD:
1080p: 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
1080PsF: 23.98, 30
1080i: 50, 60
720p: 50, 60
SD:
525i: 59.94 NTSC
625i: 50 PAL
|
| MPN: |
BDLKDUO2LP |
| Audio Sample Rate: |
24-Bit, 48 kHz |
| Производитель: |
Blackmagic Design |
| SDI Metadata Support: |
RP 188/SMPTE 12M-2 and Closed Captioning |
| Тип: |
Video Capture |
| Audio Channels: |
16 x Embedded, HD and SD (Input and Output) |
| Color Space: |
Rec. 601, Rec. 709 |
| Number of Ports: |
4 Ports |
| SDI Compliance: |
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601 |
| Модель: |

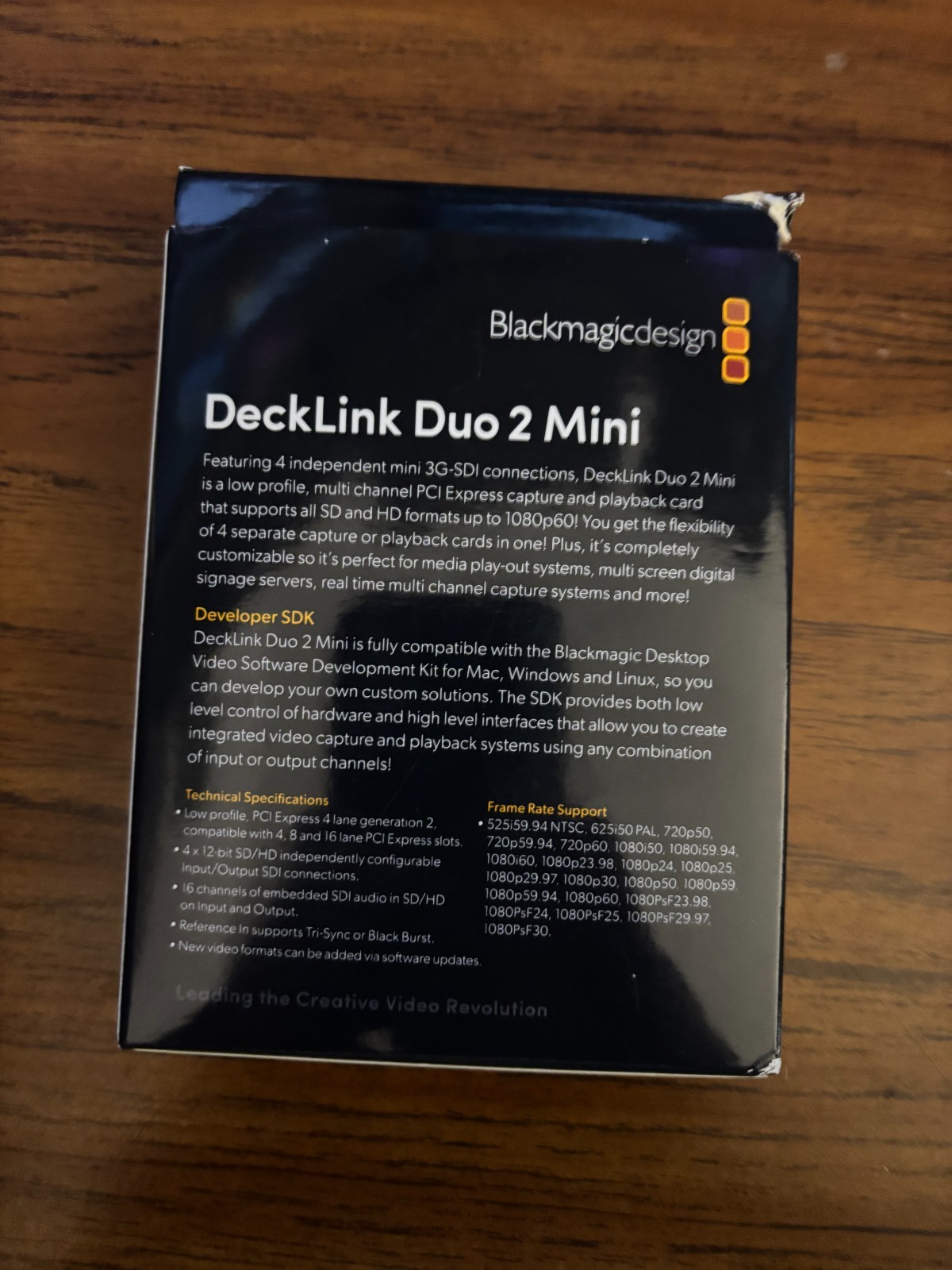

Blackmagic Design BM-BDLKDUO2LP |
| Computer Interface: |
PCI Express 4 Lane Generation 2 (Compatible with 4, 8 and 16 Lane PCI Express Slots) |
| Inputs/Outputs: |
4 x BNC 3G-SDI (Bidirectional, 12-Bit SD/HD)
1 x Reference In
|
| Conversion Modes: |
Playback: 720p to 1080p, 1080p to 720p
Up Conversion: SD to 720p or 1080p (Selectable: 4:, 14:9 Zoom, and 16:9 Zoom)
Down Conversion: SD (Selectable: Letterbox and An, Real-Time |
| Power Consumption: |
10 W |
| Relative Humidity (non-condensing): |
0 to 90% |
| Storage Temperature: |
-4 to 113°F / -20 to 45°C |
| Универсальный товарный код: |
9338716006193 |
